OM4 OFNR Jacket Fiber Optic Patch Cord with MTRJ - LC Connector LAN / CATV

Brand Name : TTI
Model Number : MU-LC-OM4
Certification : ISO, SGS, ROHS
Place of Origin : China
MOQ : 20 pcs
Price : Negotiation
Payment Terms : T/T, Western Union, PayPal
Supply Ability : 8000 pcs/day
Delivery Time : 2-3 days
Packaging Details : PE bag
Connector Type : MTRJ
Ferrule End-face : UPC
Fiber Type : OM4 50/125um
Cable Type : Duplex
Cable OD : 2.0mm
Cable Jacket : LSZH outer jacket
Cable Length : 1M, 2M, 3M or customized
Cable Color : Aqua, Purple, Violet or customized
Contact Now


OM4 OFNR Jacket Optical Cord with MTRJ - LC Connector LAN / CATV

Description:


Fiber Patch Cords are a length of optical fiber with two ends adding connectors to connect beam path. Fiber Pigtail is a length of fiber permanently attached connector only at one end.
Optical patch cords assembled with various types of connectors (such as FC, SC, ST, LC, MU, MTRJ etc.) There are three kinds of polishing fiber end-face: PC, UPC and APC .

Features:
High return loss
Low insertion loss
OFNR, OFNP, LZSH or PVC jacket
CCTC A Type optical fiber Ferrule
Fan-out available (Ribbon type / bundle type)
Customized Lengths Upon Request

Hybrid patch cords are available upon request

Application:

LAN/CATV
Building Cabling
Network, Broadband
Telecommunication
Communication equipment rooms, FTTX
Optical appliances connection


Specification:

Multimode Fiber Optic Patch Cord

Fiber type

OM1(62.5/125μm) ; OM2(50/125μm) ;

OM3/(50/125μm-150; 50/125μm-300);

OM4 (50/125μm-550)

Operating Wavelength

850 nm

Jacket material

PVC/LSZH/OFNP/OFNR

Diameter of fiber

0.9/1.6/2.0/2.8/3.0mm

Contector

SC LC ST FC MT MTRJ MPO E2000 or customized

polishing method

PC

UPC

APC

Insertion loss (IL)

≤0.2dB

≤0.2

≤0.3

Return loss (RL)

≥45dB

≥50dB

≥60dB

Repetitiveness

≤0.1dB

Exchangeability

≤0.2

Durability

>1000 times

Operating Temperature(ºC)

-40~85

Storage Temperature(ºC)

-40~85

length

customized


Order Information:

Fiber Optic Patch Cord

Connector Type

Ceramic Ferrule
End Face

Cable Diameter

(mm)

Simplex/Duplex

Single mode
/Multi-mode

Length

(meter)

FCPC/UPC/APCΦ0.9, Φ2,Φ3Simplex/DuplexSM/MMCustomized
SCPC/UPC/APCΦ0.9, Φ2,Φ3Simplex/DuplexSM/MMCustomized

ST

PC/UPC

Φ0.9, Φ2,Φ3

Simplex/Duplex

SM/MM

Customized

LC

PC/UPC

Φ0.9, Φ2

Simplex/Duplex

SM/MM

Customized

MU

PC/UPC

Φ0.9, Φ2

Simplex/Duplex

SM/MM

Customized

MTRJ

PC/UPC

Φ0.9, Φ2

Duplex

SM/MM

Customized

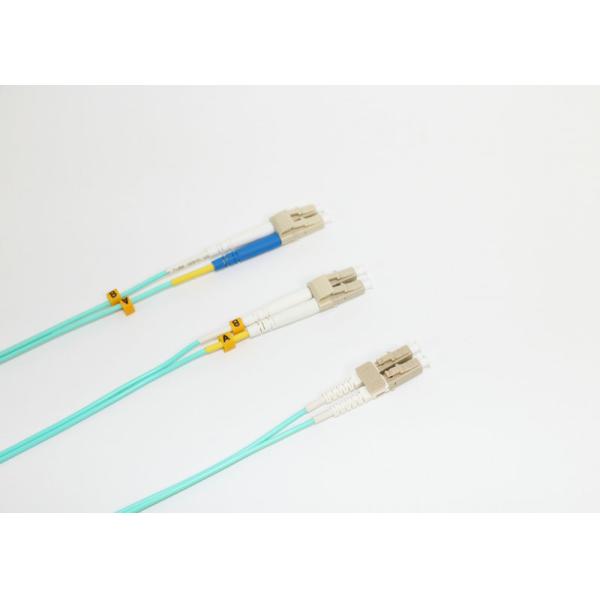

Product Picture:
