Singlemode GYXTW G652D Fiber Optic Wire Cable Black Outdoor Aerial
4 8 12 24 Fiber Count Singlemode Fiber Optic Wire Cable Black Outdoor Aerial GYXTW
1. Specification:
Central loose tube optical cable with Corrugated steel tape and parallel steel wires |
| NO.Of cores | 2~12 |
| The cable´s outer diameter(mm) | 9.8~10.8 |
| The cable´s weight(kg/km) | 70~94 |
| Permissible tensile force(N) | Tempotensile force≤1500 |
| Permtensile force≤600 |
| Permissible crush force(N/100mm) | Tempoflatting force≤1000 |
| Permflatting force≤300 |
| Min.bending radius(mm) | Dynamic bending: Optic cable OD of 20 times |
| Static bending: Optic cable OD of 10 times |
| Operating temperature | -40~+60℃ |
| Layout mode | Pipeline,overhead and embedment |
2. Characteristic:
1. GYXTW is an outdoor use optical fiber cable suitable for duct and aerial applications.
2. We supply GYXTW fiber optic cable from 2 fiber cores to 24 fiber cores.
3. Both single mode type and multimode types are available.
4. Fiber optic cable GYXTW, 2~12 fibers, jelly filled and fiber contained central loose tube, copolymer coated steel tape, two parallel steel wires 1.2mm, PE outer sheath, G652D SM fiber, detailed specification on your request.
3. Feature:

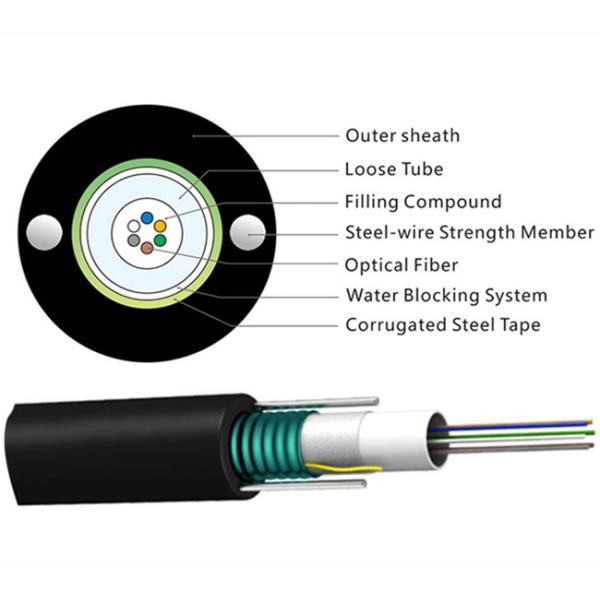

The fibers, 125μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.
| Performance | Long-term | Short-term |
| Max.Tension(N) | 3500 | 7000 |
| Max.Crushing | 300 | 1000 |
| Resistance(N/100mm2) | 30D(Dynamic) | 15D(static) |
| Storage and operating temperature | -40℃ to +70℃ |
4. Application:
- Frequent lightning area and anti electric field : The subway, tunnel
- Long-distance communication: Local trunk network & User network
- Duct and direct buried application
- Harsh environment
5. Product Picture:
6. FAQ:
1. Why choose TTI FIBER ?
(1)Professional manufacturer: Low MOQ, free samples are available.
(2)Quality assurance:Stable high quality.
(3)Customers solutions:Quick.
(4)Win-Win Price:Save much costs, bring more benefits for customers.
2. Do you accept OEM,ODM?
Yes, we accept them .
3. Can you print our LOGO?
Sure, Your LOGO can be printed on the boxes , or products.
4. What's the method of shipment?
We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.
5. What's the Payment?
We accept all payments , such as LC,TT,DP,DA,Paypal,,Money Gram.
