TTI Optical Transceivers are hot-swappable, compact media connectors that provide instant fiber connectivity for your networking gear. They are a cost effective way to connect a single network device to a wide variety of fiber cable distances and types.
By eliminating the need to maintain surplus units/ devices of various fiber types for network repairs or upgrades Small Form Pluggable Optical Transceivers reduce network equipment inventories. SFPs allow one product the flexibility to expand by speed (Fast Ethernet and 1, 10, or 40 Gigabit), and/or distance (220 m to 80 km). Network upgrades are also made easier because SFPs are interchangeable fiber connectors that can adapt to any existing network. For example, by simply replacing the pluggable optical transceiver, a media converter that was originally used in a multimode network can be re-configured to operate over a CWDM network.
TTI Optical Transceivers can be used and interchanged on a wide variety of Cisco or MSA compliant SFP products. They can be intermixed in combinations of 1000BASE-SX, 1000BASE-LX/LH, 1000BASE-EX, 1000BASE-ZX, or 1000BASE-BX10-D/U on a port-by-port basis.
1.10/100M WDM series Media Converter can convert Optical-Electric Ethernet signals between 10/100M UTP interface (TX) and 100M optical fiber interface (FX).
2. It could extend traditional 10/100M Fast Ethernet to the distance of 90km through single optical fiber link. It possesses stable performance and good quality by adopting latest IC from USA and Taiwan.
3.It must be used in couples,because the transmitted optical differs from the receive optical in wavelength. 6 Group LED indicated lights could fully monitor the working conditions of Converters.
4.It is easy for users to observe network operation.
♦ Up to 1.25Gb/s Data Links
♦ Hot-Pluggable
♦ 1310nm FP laser transmitter
♦ Duplex LC connector
♦ Up to 40 km on 9/125μm SMF
♦ Single +3.3V Power Supply
♦ Monitoring Interface Compliant with SFF-8472
♦ Low power dissipation <1W typically
♦ Industrial /Extended/ Commercial operating temperature range: -40°C to 85°C/-5°C to 85°C/0°C to 70°C Version available
♦ RoHS compliant and Lead Free
3. Application:
♦ Metro/Access Networks
♦ 1.25 Gb/s 1000Base-LX Ethernet
♦ 1×Fiber Channel
♦ Other Optical Link
4. Parameter:
Operating standards: IEEE802.3u,10/100Base-TX and 100Base-FX;
Data buffer: 128K.
Connectors: UTP Connector: RJ-45, 10/100Mbps; Fiber Connector: SC, 100Mbps
Cable UTP: Cat. 5 UTP cable (the max distance up to100m)
Fiber ( Singlemode): 8.3/125, 8.7/125, 9/125, 10/125μm(the max distance up to 90km)
Flow Control: Full Duplex: IEEE802.3x,Half Duplex: back pressure
LED Power, FX SD, FX Link/Act, TX 100, TX FDX, TX Link/Act.
Power Requirement: AC 110 ~ 240V to DC 5V; DC48V to DC 5V.
Ambient Temperature: 0 ~ 50°C
Storage Temperature: - 40 ~ 70 °C
Humidity: 5 ~ 90%
Dimensions: Internal power: 30×110×140mm
External power: 26×70×93mm
4. Absolute Maximum Ratings:

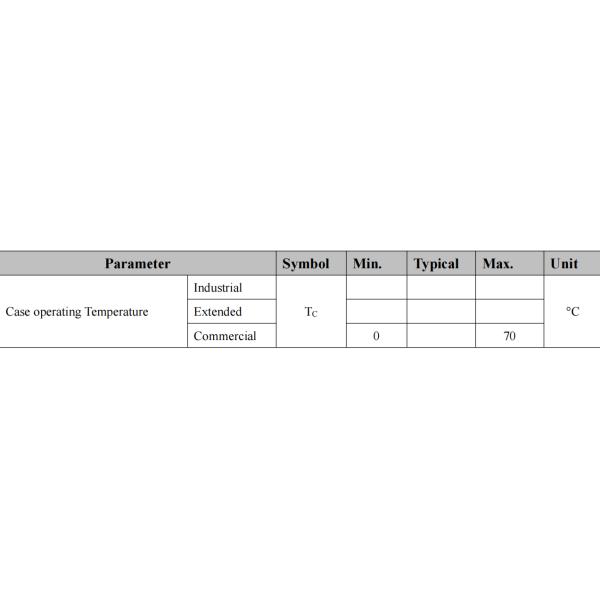

5. Recommended Operating Environment:
6. Electrical Characteristics (TOP = Tc, VCC = 3.0 to 3.6 Volts):

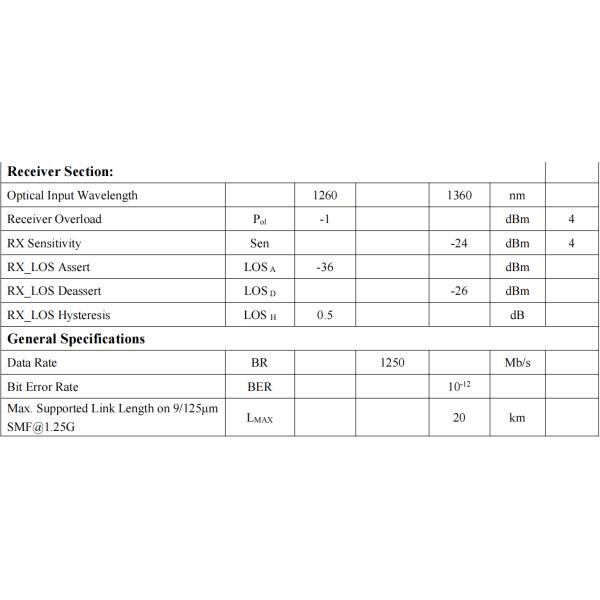

7. Optical Parameters(TOP = Tc, VCC = 3.0 to 3.6 Volts):
Reference:
1. IEEE Std 802.3, 2002 Edition, Clause 38, PMD Type 1000BASE-LX.IEEE Standards Department, 2002.
2. “Fibre Channel Physical and Signaling Interface (FC-PH, FC-PH2, FC-PH3)”.American National Standard for Information Systems.
3. “Fibre Channel Draft Physical Interface Specification (FC-PI 13.0)”. American National Standard for Information Systems.
4. Small Form-factor Pluggable (SFP) Transceiver Multi-source Agreement (MSA) September 14, 2000.
