ST UPC Fiber Optic Patch Cord OM2 62.5 With ROHS Optical Cable Fiber Optic Jumper

Brand Name : TTI

Model Number : ST/LC/SC

Certification : ISO, SGS, ROHS

Place of Origin : China

MOQ : 20 pcs

Price : Negotiation

Payment Terms : T/T, , PayPal

Supply Ability : 8000 pcs/day

Delivery Time : 2-3 days

Packaging Details : PE bag

Connector Type : SC LC ST

Ferrule End-face : UPC

Fiber Type : OM1/OM2/OM3/OM4

Cable Type : Simplex/Duplex

Cable OD : 0.9/2.0/3.0mm

Cable Jacket : PVC/LSZH/OFNR/OFNP outer jacket

Cable Length : 1M, 2M, 3M or customized

Cable Color : Orange, Yellow, Aqua, Purple, Violet or customized

Contact Now

ST UPC Fiber Optic Patch Cord OM2 62.5 with ROHS Optical Cable

Description:

Fiber Patch Cords are a length of optical fiber with two ends adding connectors to connect beam path. Fiber Pigtail is a length of fiber permanently attached connector only at one end.

Features:

High return loss
Low insertion loss
OFNR, OFNP, LZSH or PVC jacket
CCTC A Type optical fiber Ferrule
Fan-out available (Ribbon type / bundle type)
Hybrid patch cords are available upon request

Customized Lengths Upon Request

Application:

CATV

Optical fiber communication systems

Optical fiber data transmission

Building network access

Cabling system, ODF

FTTX applications

Specification:

Item	Single mode		Multi mode
Splicing Type	UPC	APC	PC
Insertion Loss	<=0.3dB	<=0.2dB	<=0.3dB
Reture Loss	>=45dB	>=55dB	>=35dB
Repeatability	<=0.1dB	<=0.1dB	<=0.1dB
Temperature	-40/+80°C

ITEM	CABLE OD. mm(a)	CABLE WEIGHT (kg)	MAXIMUM TENSILE		BEND RADIUS		L.P. N/100mm
ITEM	CABLE OD. mm(a)	CABLE WEIGHT (kg)	S.T.	L.T.	Dyn.	Sta	L.P. N/100mm
2.0MM	Φ2.0±0.1	13	200	100	50	30	4500
2.8MM	Φ2.8±0.1	21	500	250	60	30	3500
3.0MM	Φ3.0±0.1	22	600	300	60	30	3500

Competitive Advantage:

Zero-Defects QA Program
High Quality Materials
Advanced Equipment & Tooling
In-house Engineering
Expert Technical Support
100% Product Testing
100% Product Guarantee
Fast Turn Around
Same-Day Manufacturing Available

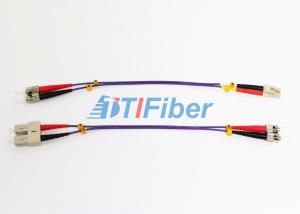

Product Picture:

ST UPC Fiber Optic Patch Cord OM2 62.5 With ROHS Optical Cable Fiber Optic Jumper
